DESCRIPTION

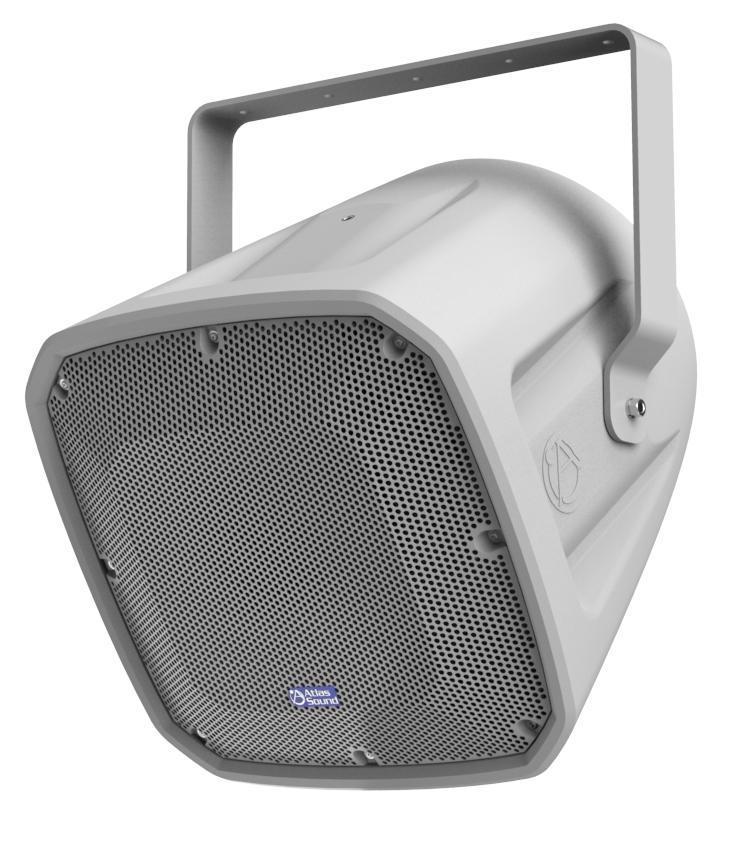

The FS12T-BT60 is two-way, full-range speaker system engineered for nearfield applications while providing excellent voice and music reproduction. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability.
It incorporates a 12" LF driver and 1" HF driver concentrically mounted to a high-directivity waveguide. It provides 90° conical coverage and is tuned for optimal source reproduction.

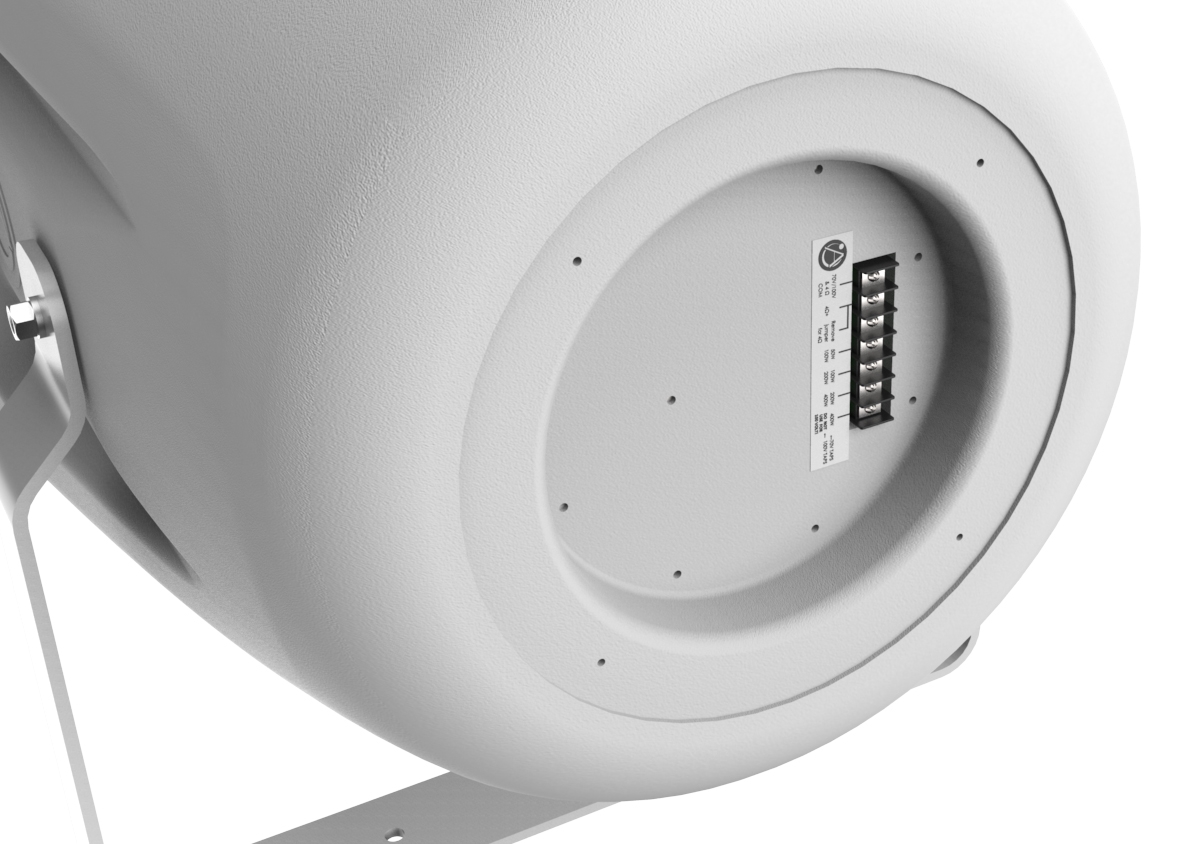

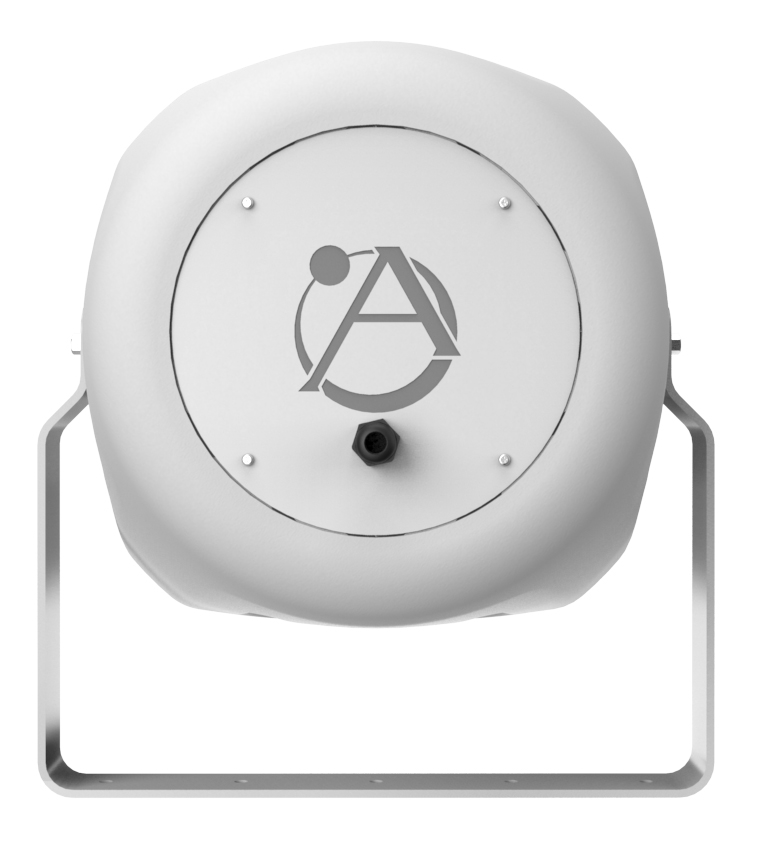

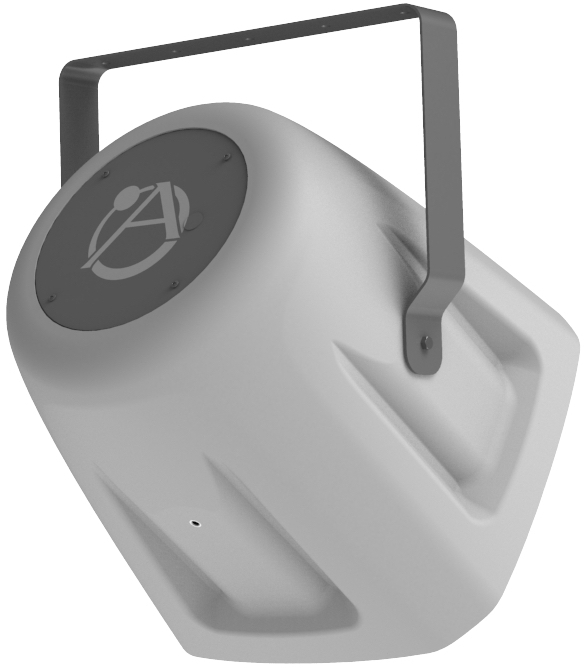

The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. Input is via an integrated 70.7V transformer with low insertion loss and full frequency response with power taps up to 200-watts including an 8Ω bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral “battle ship grey” that is UV resistant and allows for years of durability.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Features
All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons
200 Watts Power Handling
Constant Directivity Design Offers Controlled Coverage of 90º Conical (2kHz Octave Band)
Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" HF Driver
Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker
Includes a Built-In, High Efficiency 200 Watt 70.7V Transformer
Four Eyebolt Inserts for Multiple Mounting Capabilities
Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
Easy Service Design Allows Transducers to be Serviced in the Field without Uninstalling the Enclosure from the Mount
SPECIFICATIONS
Power Taps 200, 100, 50, 25 Watts & 8Ω bypass
Sensitivity 93.5dB SPL
Frequency Response 62Hz - 14kHz
Height 19.56" (49.78 cm)
Driver Type 1" HF and 12" LF
Depth 18.5" (46.9 cm)
Dispersion 90º Conical
Environment IP45
Max SPL 116.5dB SPL
Width 18.5"(46.9 cm)
Weight 39.00 lbs (17.69 kgs)
Color Pantone 423 C - RAL 7045
Warranty Period 60 months from date of purchase
