DESCRIPTION

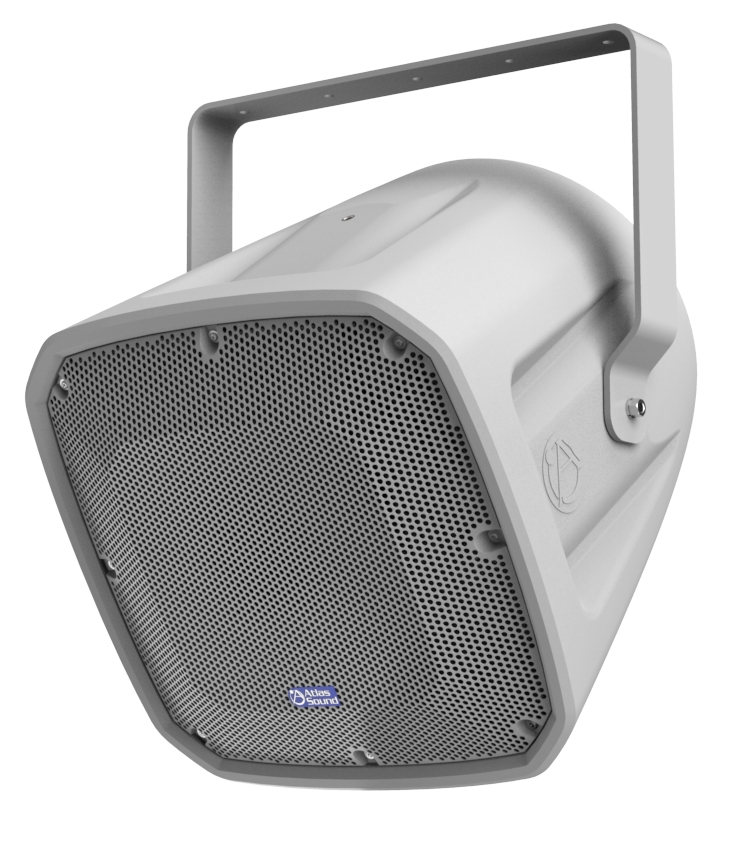

The EN54-24 certified FS12TEN-94 is two-way, full-range loudspeaker system engineered to provide excellent voice and music reproduction in applications requiring weather resistance. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability.
It incorporates a 12" LF driver and 1" exit HF compression driver concentrically mounted to a high-directivity waveguide. It provides 90° x 40° coverage and is tuned for optimal source reproduction.
The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure.The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. Input is via an integrated 70.7V / 100V transformer with low insertion loss and full frequency response with power taps up to 400-watts including an 4Ω bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral “battle ship grey” that is UV resistant and allows for years of durability.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Features
All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons
400 Watts Power Handling
Constant Directivity Design Offers Controlled Coverage of 90º Horizontal by 40 º Vertical (2kHz Octave Band)
Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver
Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker
Includes a Built-In, High Efficiency 400 Watt 70.7V Transformer
Four Eyebolt Inserts for Multiple Mounting Capabilities
Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
Easy Service Design Allows Transducers to be Serviced in the Field without Uninstalling the Enclosure from the Mount
EN54-24 Certified
ISO 7240-24 Certified
SPECIFICATIONS
Power Taps 400, 200, 100, 50 Watts & 4Ω bypass
Sensitivity 86.5dB SPL
Max SPL 109dB SPL
Frequency Response 80Hz - 17.6kHz
Driver Type 1" HF and 12" LF
Dispersion 90º H x 40º V
Ingress protection IP33C (When Tilted ≥ 15° Downwards)
Height 19.56" (49.78 cm)
Width 18.5"(46.9 cm)
Depth 18.5" (46.9 cm)
Weight 48.00 lbs (21.77 kgs)
Color Pantone 423 C - RAL 7045
Warranty Period 60 months from date of purchase
